Features:

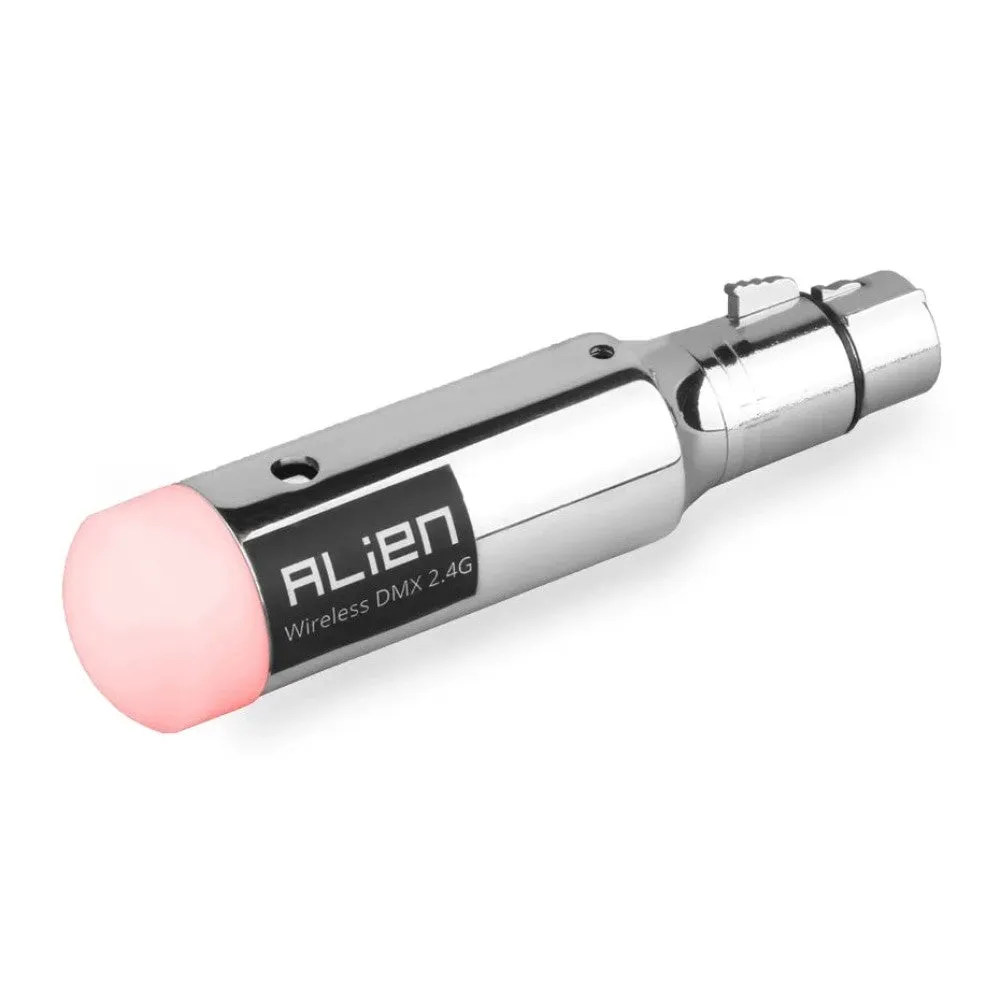

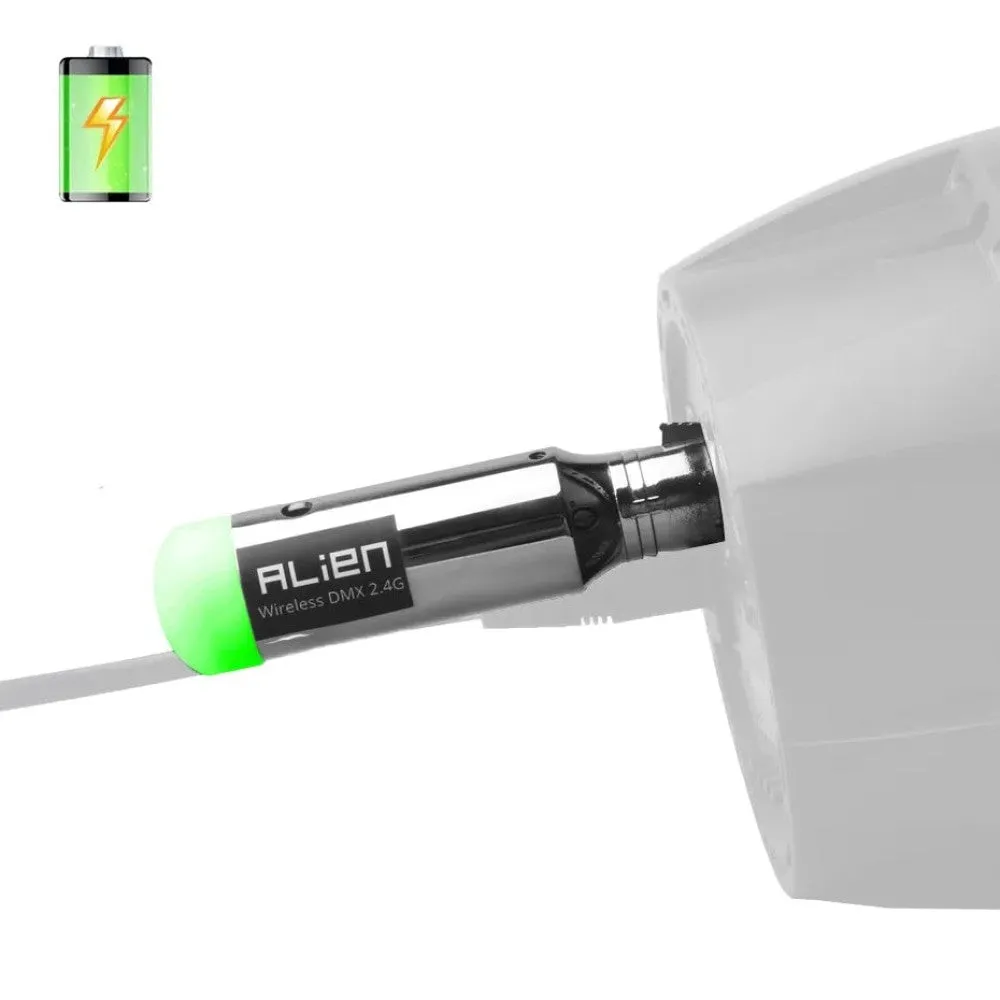

Latest design wireless DMX512 receiver have a built-in battery, don't need power adapter any more when it works. 2 hours full charging time, 4 hours working time. Users also can use the product while charging.

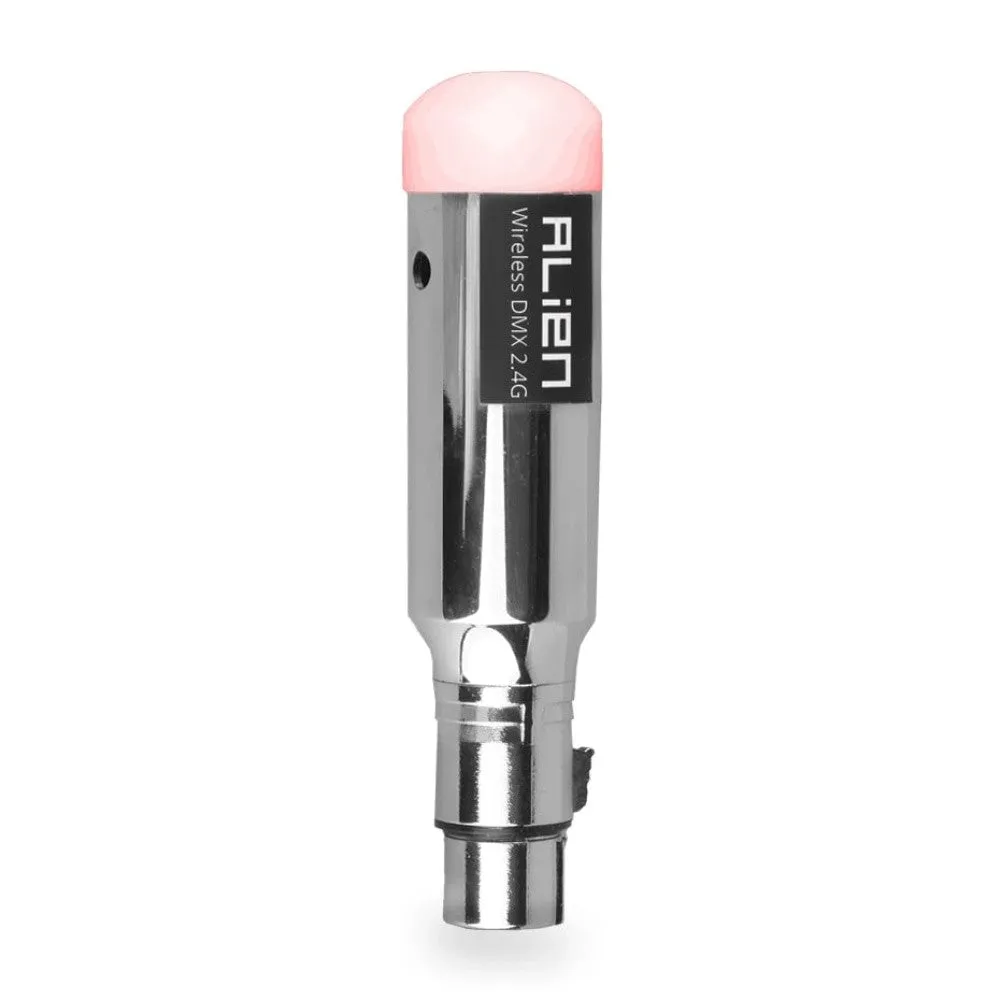

Metal Black Shell. ID Code "1-7" groups ID code, press 'KEY' for setting, it only can work under same ID code of transmitter and receiver. (Same LED Colour).
This product adopts a 2.4G ISM frequency section. High effective GFSK modulate, communication design. No time delay when signal data is transmitting, signal data is real time and reliably.
RF frequency 2.400 - 2.525G 126 channels jumping frequency automatically, high anti-jamming ability.
The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section. Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.

Specifications:
4G wireless DMX512 R/T

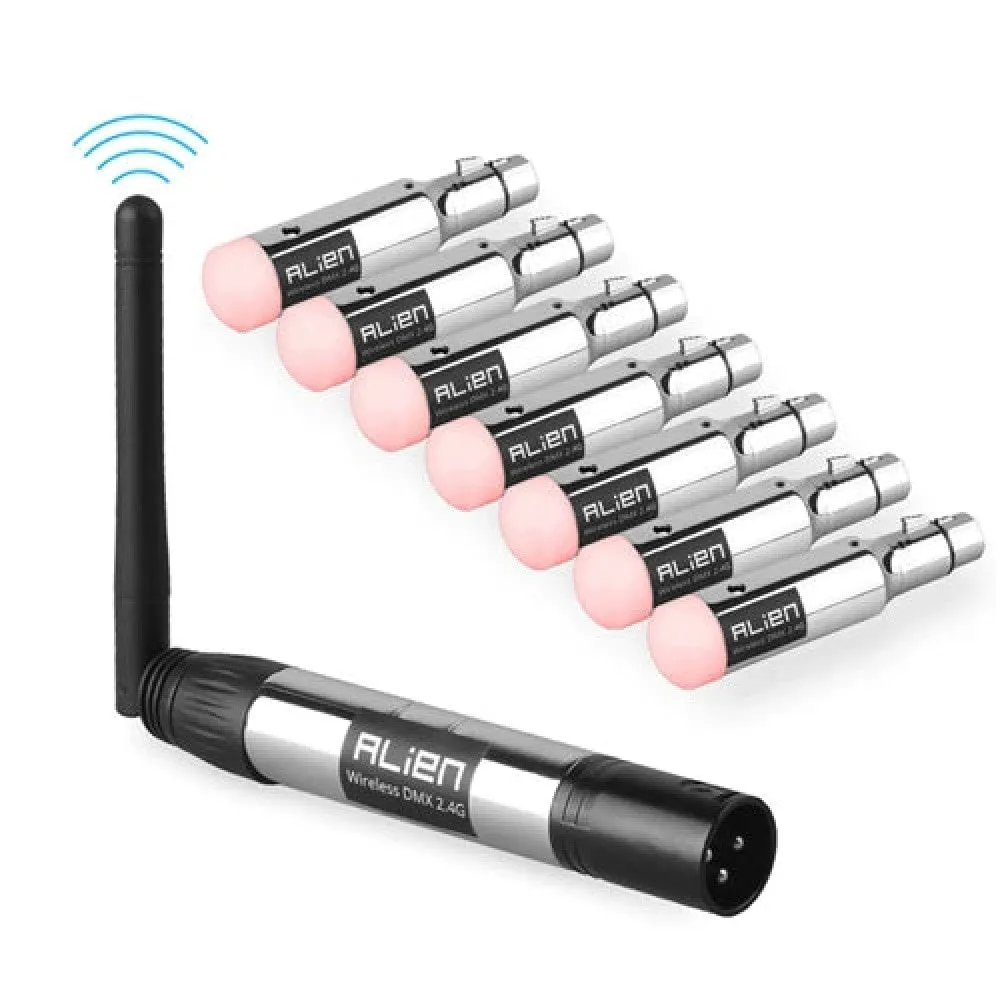

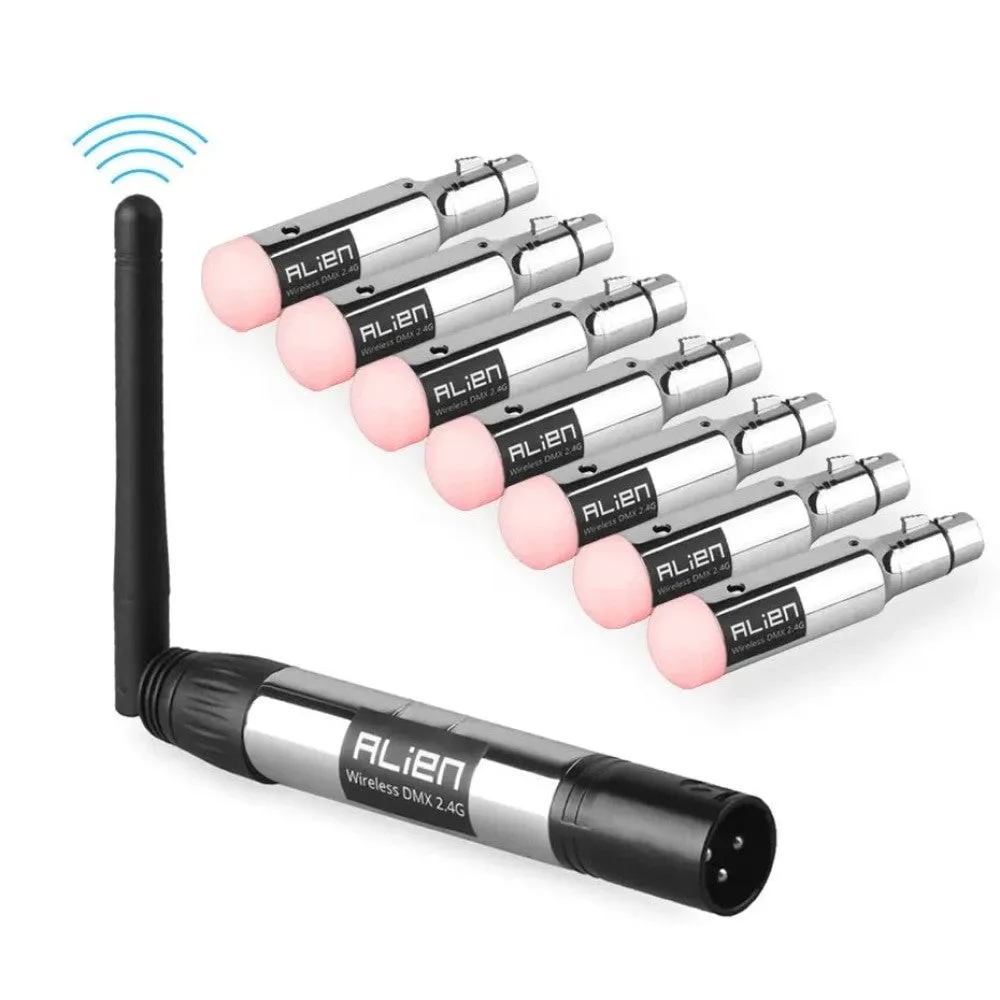

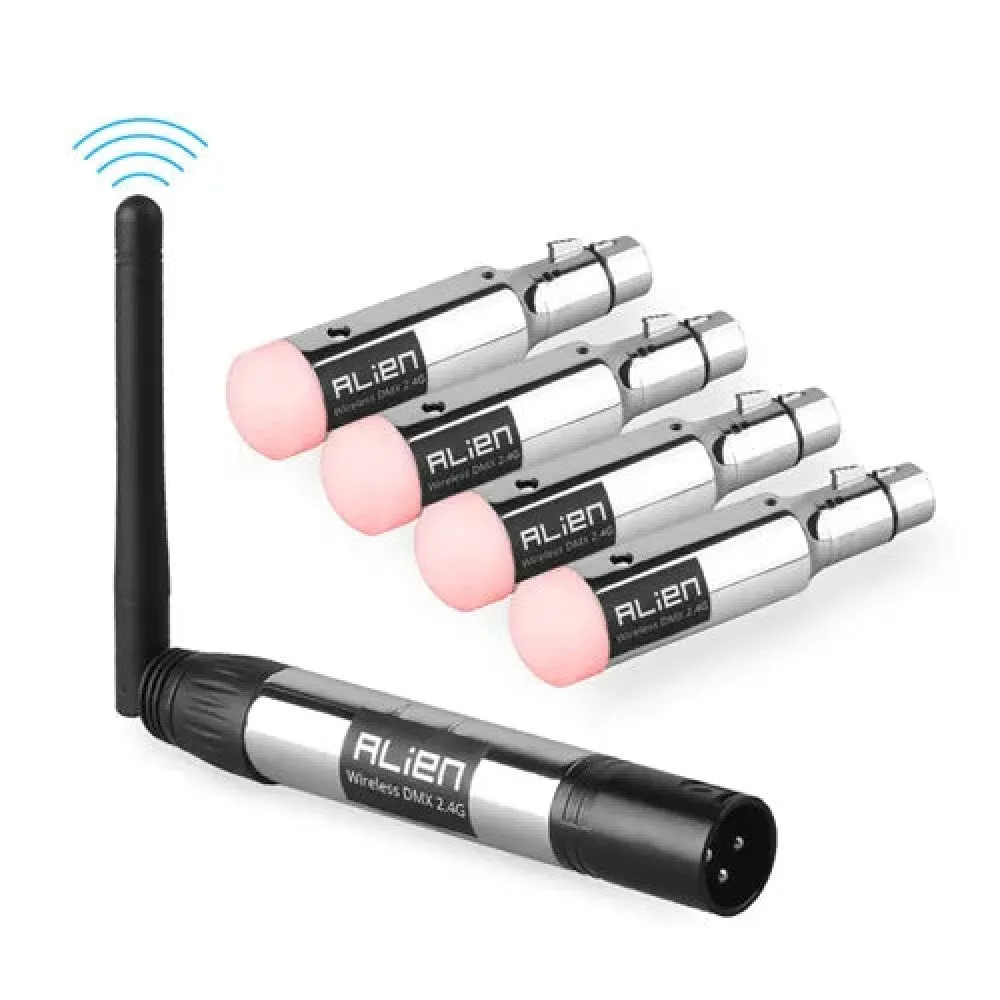

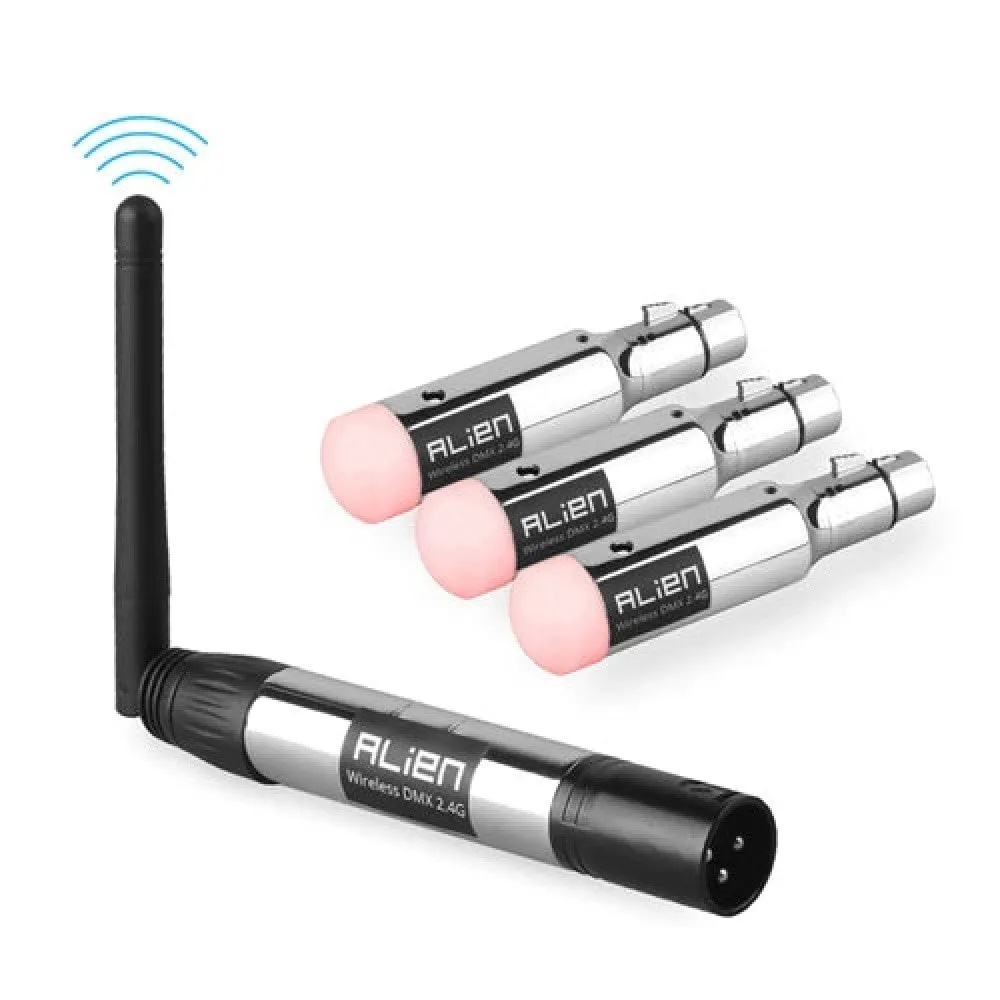

7 groups ID code settable, User can use 7 groups individual wireless net without any interfere.
Input voltage: 5VDC 500mA MIN
Communication distance: 300M (visible distance)
Battery: 16340 battery 3.7V 650mA
Max transmitting power rate: 20dBm
Receiver Sensitivity94dBm
CPU: 32-bit ARM Core
Modulation: GFSK
DMX Signal Interface: RS485
Operating temperature40 ~ 85 C,Storage Temperature65 ~ 150 C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Package Includes:

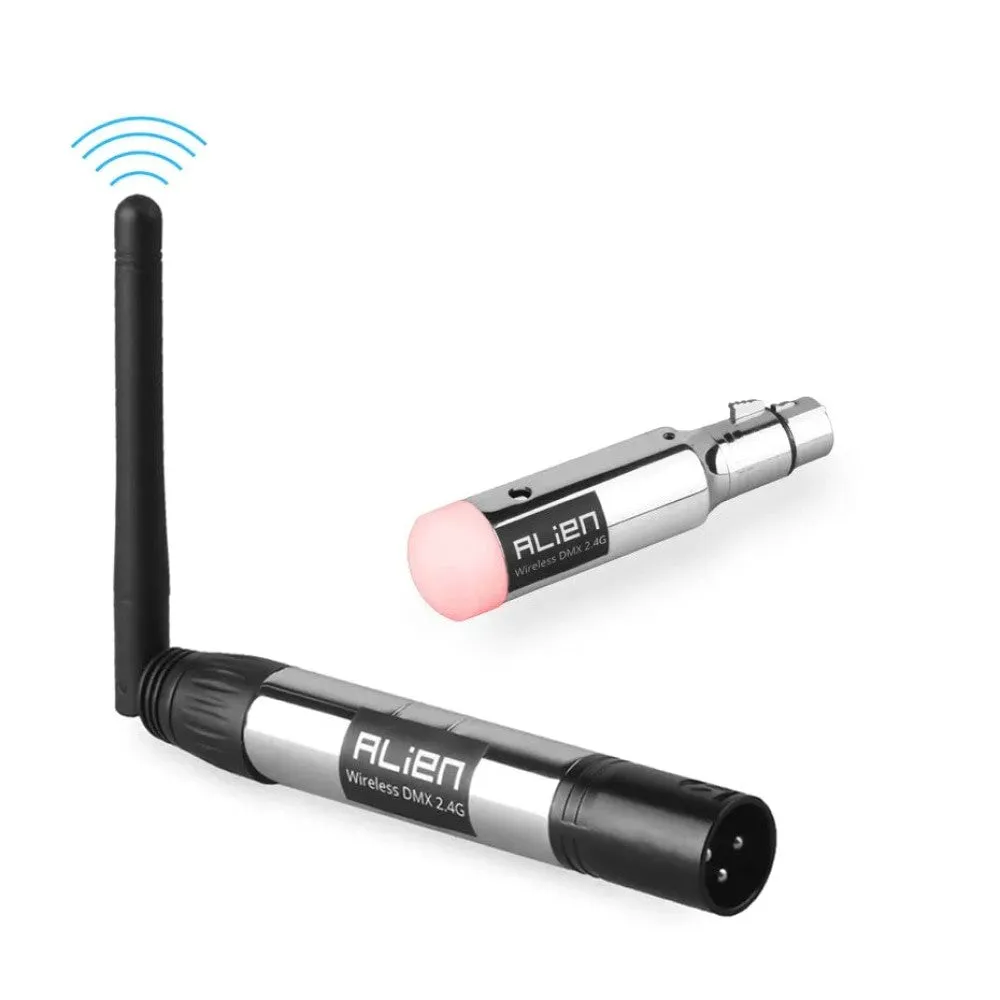

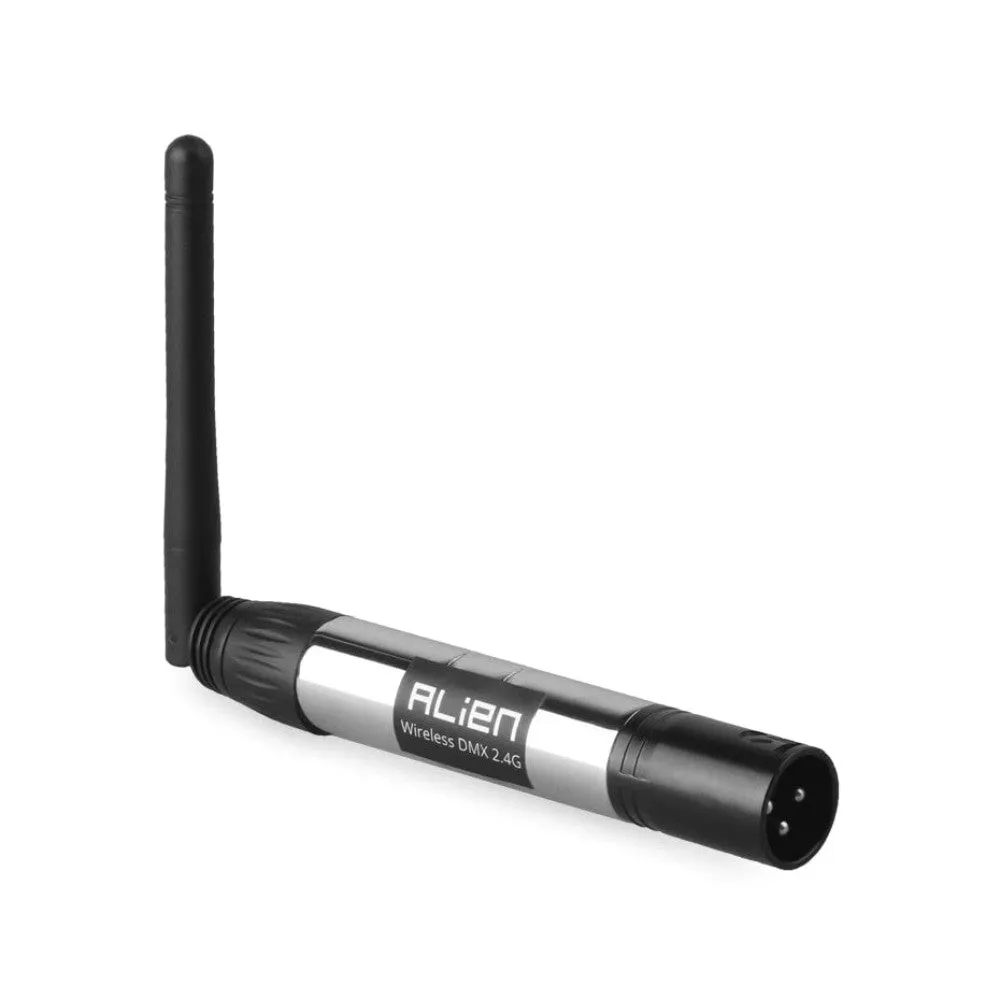

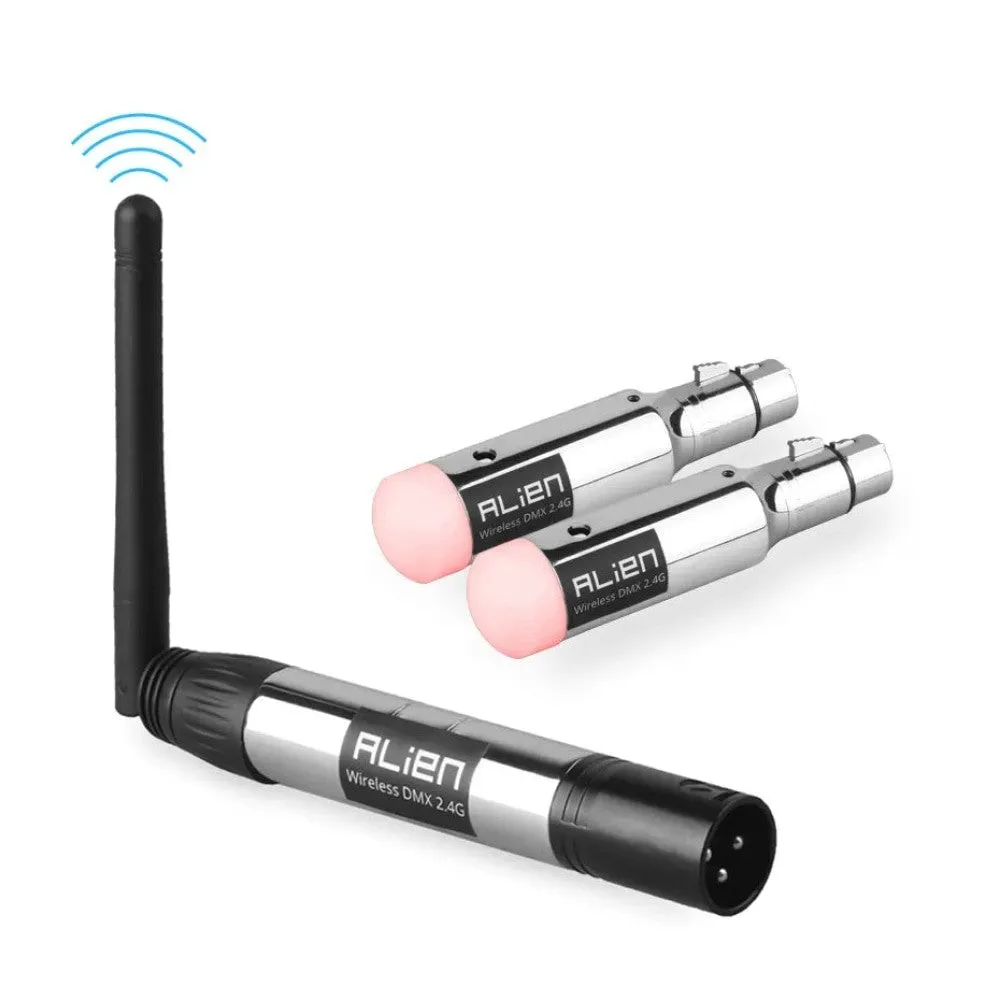

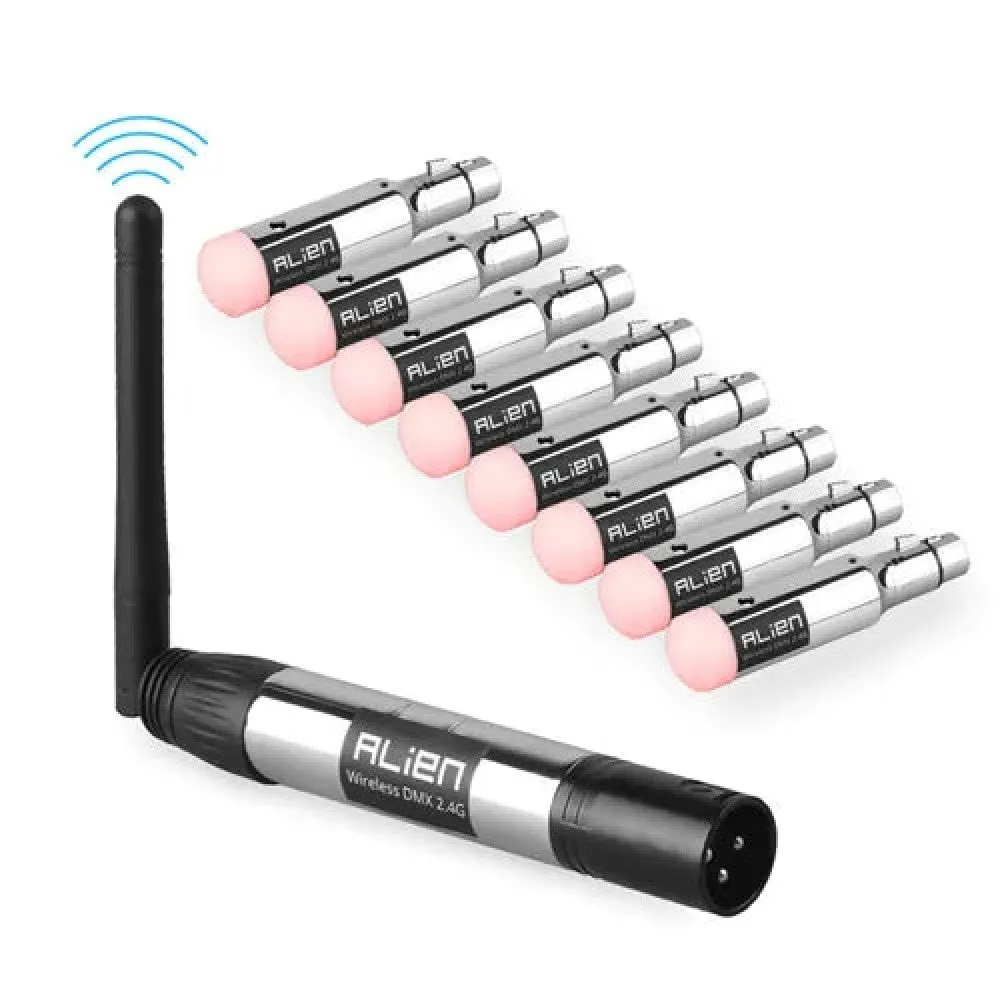

1 x 2.4G ISM DMX512 Dfi Controller Rechargeable Wireless Receiver Built-in Battery Transmitter 3 Pin XLR for DMX Stage Lights
